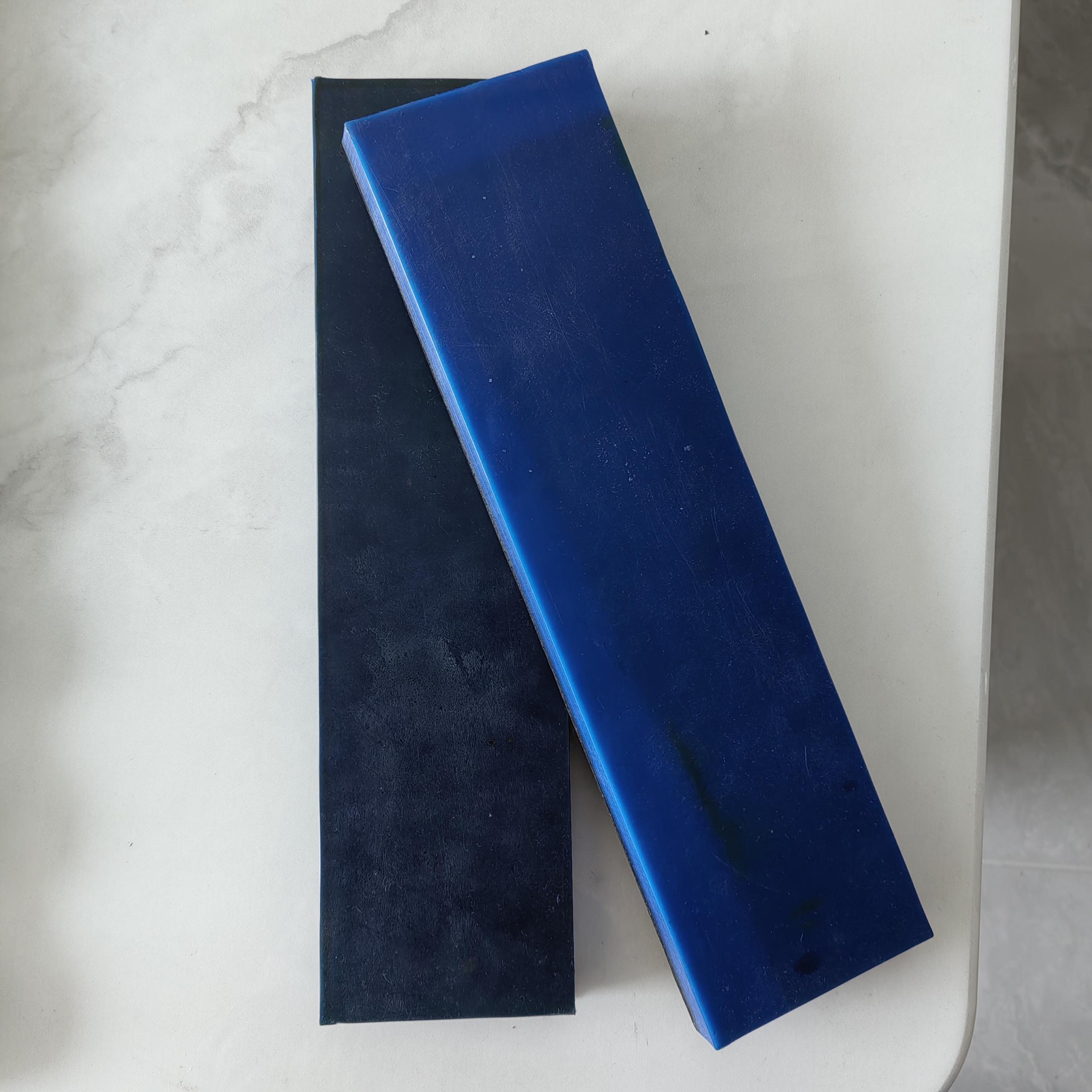

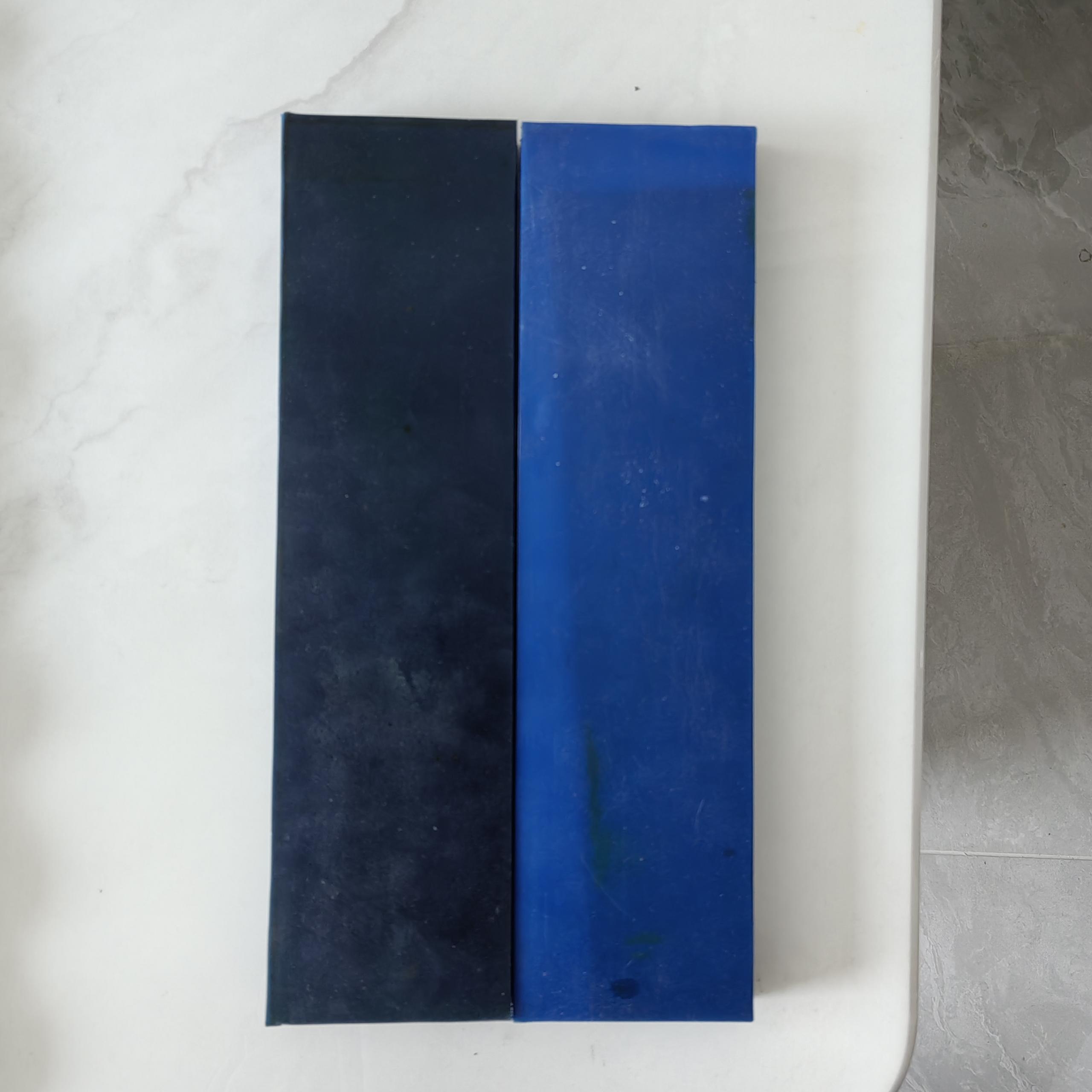

UHMWPE (Ultra-High Molecular Weight Polyethylene) Rubber Bonded Sheets are high-performance composite materials that combine the extreme wear resistance of UHMWPE with the vibration damping and grip properties of rubber. These hybrid sheets are engineered for applications requiring both structural durability and shock absorption, offering superior performance in high-impact, high-friction environments.

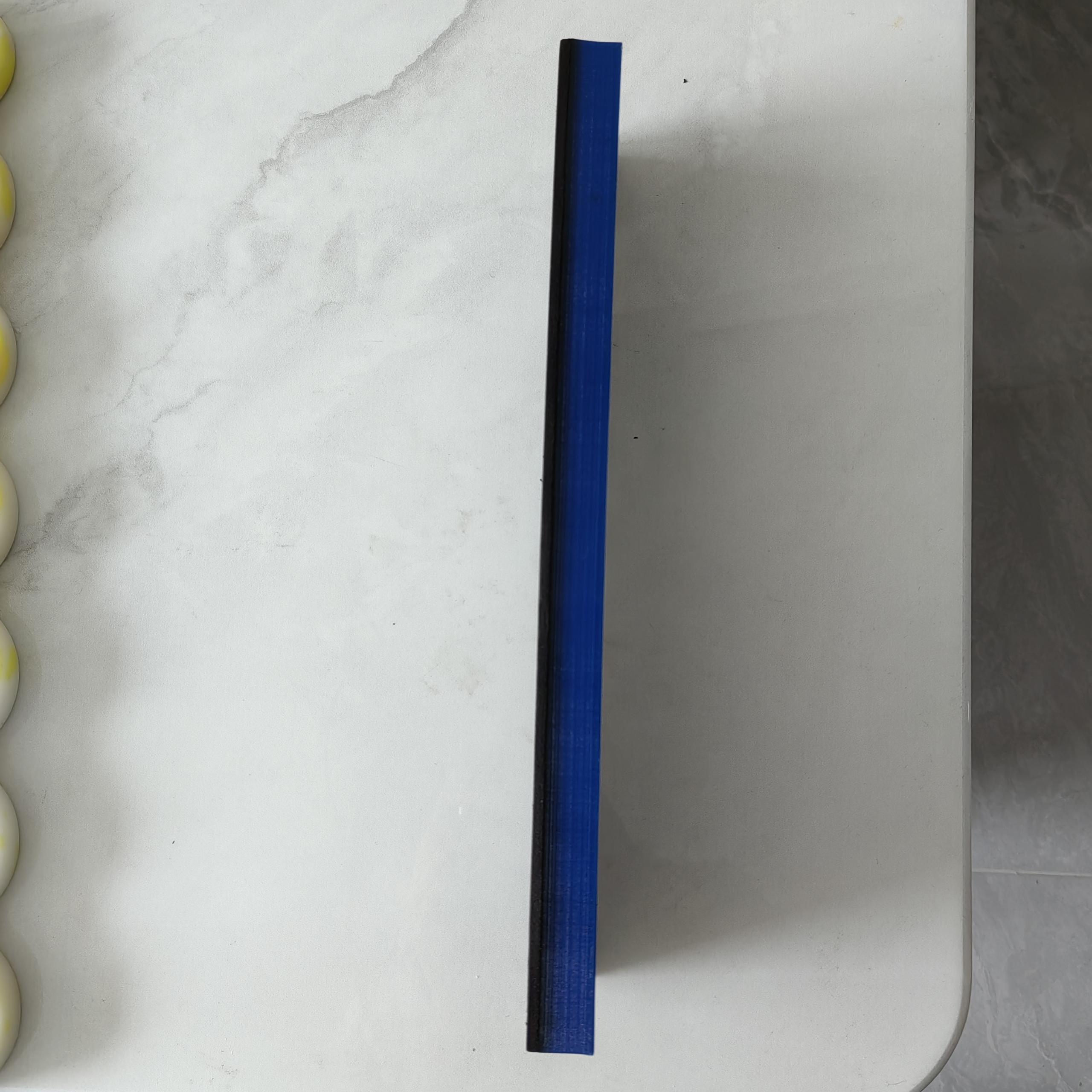

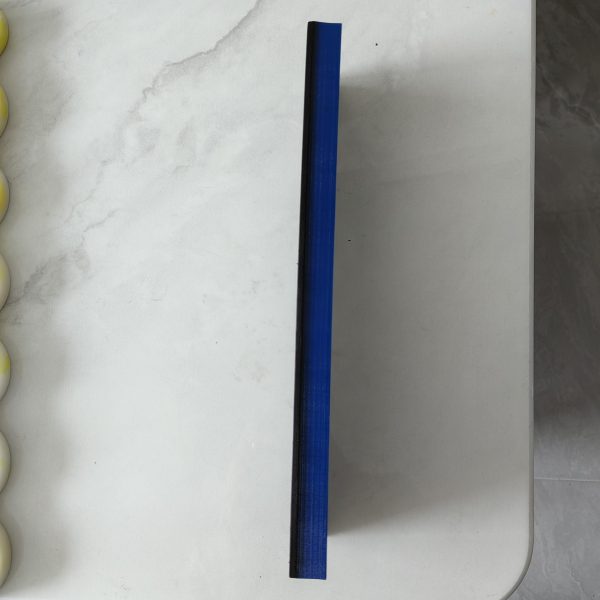

Top Layer: 3-10mm UHMWPE sheet (abrasion-resistant/low-friction surface)
Base Layer: 5-20mm rubber (SBR, Nitrile, or EPDM) bonded with high-strength adhesive
Permanent Bond: Chemically fused interface prevents delamination under stress
Impact Absorption: Rubber layer dampens vibration and shock (up to 70% energy reduction)
Non-Slip Grip: Rubber underside prevents sheet movement on metal/concrete surfaces
Wear Resistance: UHMWPE surface withstands 15x more abrasion than carbon steel
Noise Reduction: Eliminates metal-on-metal clanging in material handling systems
Temperature Range: -40°C to +80°C (wider than pure UHMWPE)
Load Capacity: Up to 500MPa compressive strength (varies by rubber grade)
Chemical Resistance: UHMWPE layer protects against oils/solvents; rubber selection determines base resistance
| Industry | Application | Benefit |
|---|---|---|
| Mining & Quarrying | Chute liners | Combines wear protection with impact absorption from falling rocks |
| Steel Manufacturing | Roller conveyor beds | Reduces noise while handling hot metal ingots |
| Port Machinery | Crane rail pads | Dampens vibration from container handling |
| Food Processing | Anti-fatigue flooring | Slip-resistant surface with easy-clean UHMWPE top |
| Rail Transport | Wagon lining sheets | Prevents cargo shifting with high-friction rubber base |
